Display Features

Others Features  Read speed up to 7400MB/s¹, sequential write speed up to 6500MB/s¹, random read up to 1,000,000 IOPs, random write up to 900,000 IOPs

Key Features

Capacity  1TB

Form Factor  M.2 2280

Interface  PCIe Gen4x4

MTBF  1,500,000 Hours

TBW  1TB: 1000TBW

Temperature

Operating Temperature  0° to 70° C (32°F to 158°F)

Storage Temperature  -40° to 85° C (-40°F to 185°F)

Physical dimension

Dimension  80 x 22 x 2.45 mm / 3.15”x0.87”x0.10”

Physical Specification

Weight  6g / 0.013lbs

Warranty Information

Warranty  5-Years Limited Warranty

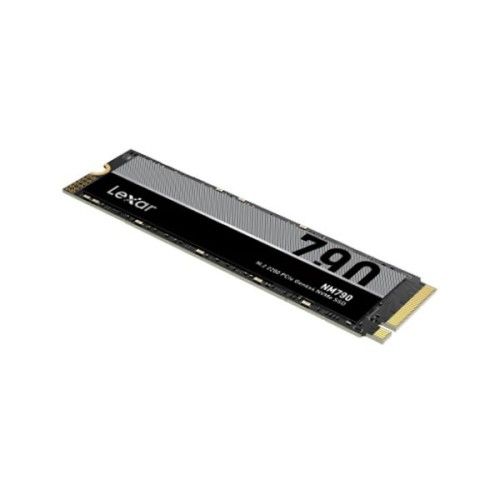

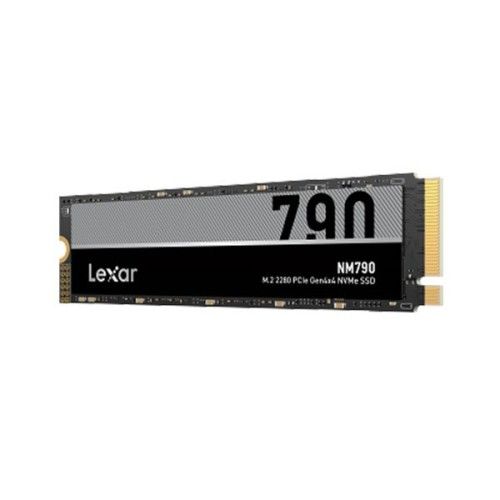

Lexar NM790 1TB Gen 4 NVMe M.2 2280 SSD

Lexar NM790 1TB Gen 4 NVMe M.2 2280 SSD is a high-performance storage solution designed to meet the demands of modern computing. Featuring an M.2 2280 form factor, it is compatible with both ATX and Micro ATX motherboards, making it versatile for a wide range of desktop builds. The SSD leverages the PCIe Gen4x4 interface, which enables exceptional data transfer rates. Users can expect impressive read speeds of up to 7200MB/s and sequential write speeds of up to 4400MB/s, which significantly reduces load times and enhances overall system responsiveness. Additionally, the drive offers random read and write speeds of up to 800,000 IOPs, ensuring swift data access and multitasking capabilities. The NM790 is designed to operate within a temperature range of 0° to 70° C (32°F to 158°F), making it suitable for various computing environments. For data integrity and durability, the SSD is shock resistant up to 1500G with a 0.5ms duration and half sine wave configuration. It also exhibits vibration resistance from 10 to 2000Hz with specifications of 1.5mm, 20G, and 1 Oct/min for 30 minutes per axis (X, Y, Z). These robust physical characteristics ensure the drive can withstand the rigors of daily use and accidental impacts. The Lexar NM790 has a mean time between failures (MTBF) of 1,500,000 hours, highlighting its reliability for long-term use. It also boasts a total bytes written (TBW) rating of 500TBW for the 1TB model, indicating its endurance under intensive write operations. Measuring 80 x 22 x 2.45 mm (3.15” x 0.87” x 0.10”) and weighing only 6 grams (0.013 lbs), the SSD is compact and lightweight, making installation straightforward and unobtrusive. Overall, the Lexar NM790 1TB Gen 4 NVMe M.2 2280 SSD combines high-speed performance, durability, and reliability, making it an excellent choice for gamers, content creators, and professionals who require fast and dependable storage solutions.
